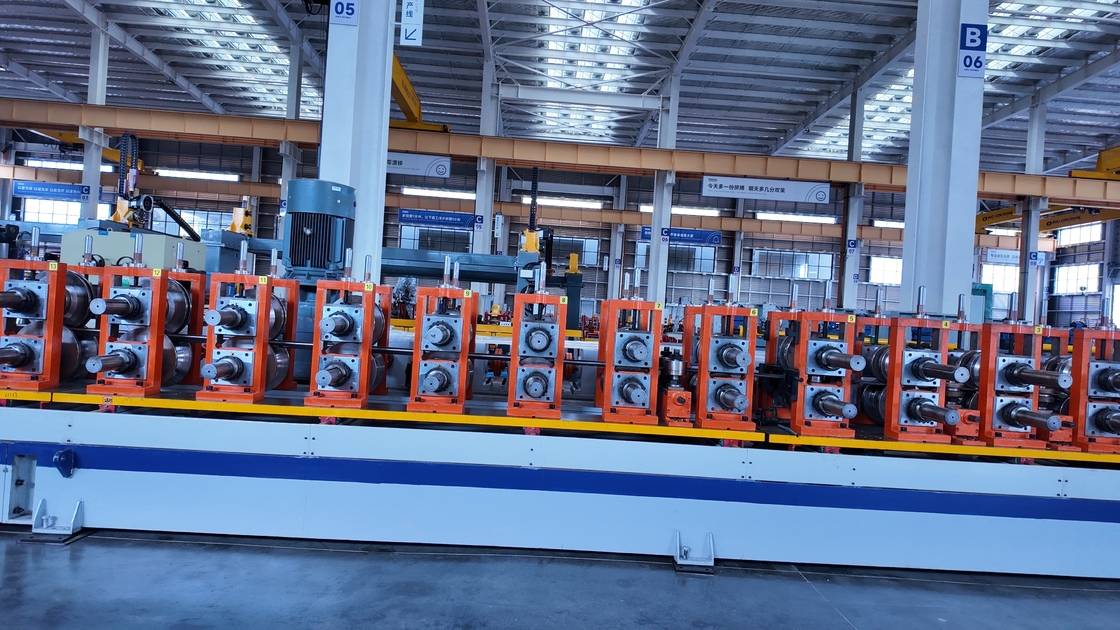

Automatic Profile Production Line with PLC

Nama Merek:	THRONCH
Moq:	1 set
Harga:	USD 100000-200000 PER SET
Detail Pengemasan:	Tubuh utama stud logam berkecepatan tinggi dan mesin pembentuk lintasan telanjang dan ditutupi oleh
Ketentuan Pembayaran:	TT / LC, Western Union, MoneyGram

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

CE.ISO

Produk:

Lini Produksi Profil Otomatis dengan PLC

Menggunakan:

Atap, Dinding, kusen pintu, struktur rumah, baki kabel

Kondisi:

BARU

Berat:

10T,3,5T,5 Ton,5,5 ton,12ton

Jenis ubin:

Baja, Baja Glasir Berwarna

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan teknis video, Layanan pemeliharaan d

Sertifikasi:

CE/ISO9001,CE,BV,Ce Bv Iso Sgs,CE$ISO

Jaminan:

1 Tahun,5 Tahun, Selamanya,2 tahun,12 bulan

Sistem Pengendalian:

PLC (Merek impor),PLC,XINJIE,PLC Delta Inverter, Taiwan Delta

Kekuatan (w):

4+3KW, 7,5 kW, hidrolik, 11kW, 5.5kw

Bahan poros:

GCR15

Cutting Blade Material:

SKD11,Cr 12Mov dengan perlakuan padam

Bahan mentah:

Lembaran baja warna, lembaran galvanis, lembaran aluminium, ppgi, ppgi/lembaran galvanis

Ketebalan:

0,8- 3mm

Warna:

Menurut permintaan Anda, permintaan klien, biru/merah/kuning/dan sebagainya, disesuaikan

Menyediakan kemampuan:

10 set / bulan

Menyoroti:

PLC automatic profile production line

automatic roll forming machine with PLC

PLC-controlled profile production line

Deskripsi Produk

Automatic Profile Production Line with PLC

Key Specifications

Attribute	Value
Material Compatibility	Steel, Aluminum, ZAM
Control System	Servo Motor And PLC
Horizontal deviation	± 0.5 mm
Longitudinal deviation of hole	± 0.5 mm
Warranty	1 year
Power Supply	220V, 380V
Punching Speed	300 Punches Per Minute
Operation Mode	Automatic
Key Selling Points	Long Service Life

Product Features

Produces different purlin sizes without changing rollers or spacers
No need to change cutter for different sizes
Easy operation with low maintenance cost
Infinite sizing capability within machine range helps save material
Optional punch hole at any position of purlin web side and flange side

Technical Parameters

Parameter	Value
Suitable material	Carbon steel, Color steel sheet, galvanized steel sheet
Main motor power	37 or 55 kW with Cycloidal reducer
Hydraulic station power	55kW, 37 kW
Hydraulic oil	40#
Thickness	1.0mm~8.0 mm
Diameter	Φ70mm, Φ80mm, Φ90mm...
Electric tension	220V/380V 3phase 50HZ
Material of roller	Cr12MoV (Equivalent to SKD11, STD11, D2)
Rolling galvanization thickness	1-3 mm
Processing speed	10-40 m/min
Processing precision within	10m±1.00mm
Material of cutting blade	Cr12MoV quenched

Production Display

Applications

Production Process

Packing and Shipping

Frequently Asked Questions

Q1. What are the main key points for selecting right machines?

A1: Whole structure, Roller Shaft, Roller Material, Motor & Pump, and Control system. As the new buyer, please kindly know that price is not the final point. Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machines need to be customized as per detailed request, because raw material, size, production usage, machine speed, and machine specification will be different.

Q3. What's your standard trade terms?

A3: We can provide the technical offer with FOB, CFR, CIF, Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE, TUV/BV Certificate.

Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
