rincian produk

Rumah > Produk >

Mesin pembentuk gulung otomatis

2000pcs Hr Purlin Roll Forming Machine

Semua Kategori

Mesin Pembentuk Gulungan CZ Purlin

Mesin pembentuk gulung otomatis

Omega Profil Roll Forming Machine

Mesin Pembentuk Pengaman Jalan Raya

mesin pembuat gulungan baki kabel

2000pcs Hr Purlin Roll Forming Machine

Nama Merek:	THRONCH
Moq:	1 set
Harga:	USD 100000-200000 PER SET
Detail Pengemasan:	Tubuh utama stud logam berkecepatan tinggi dan mesin pembentuk lintasan telanjang dan ditutupi oleh
Ketentuan Pembayaran:	TT / LC, Western Union, MoneyGram

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE.ISO

Nama:

Mesin Roll Forming Purlin 2000pcs Jam

Presesi Proses:

≤ 1mm

Bahan rol:

CR12MOV (SKD11 \ ASTM D2)

Warna:

Biru/disesuaikan

Kecepatan produksi:

20-35 meter per menit

Penggunaan:

panel atap, braket soalr

Aplikasi:

Panel atap, panel dinding, kusen pintu, profil baja

Bahan spindel:

40cr Aisi 5140 \ DIN 41CR 4)

Diameter poros:

70/90/100/120mm

Poin Penjualan Utama:

Umur Panjang

Lebar Bergulir:

100-400mm

Metode pemotongan:

Pemotongan hidrolik

Tenaga Motorik Utama:

55KW/75KW

Sistem kendali:

Kontrol PLC dengan layar sentuh

Menyediakan kemampuan:

10 set / bulan

Menyoroti:

2000pcs HR purlin roll forming machine

automatic purlin roll forming machine

HR steel roll forming machine with warranty

Deskripsi Produk

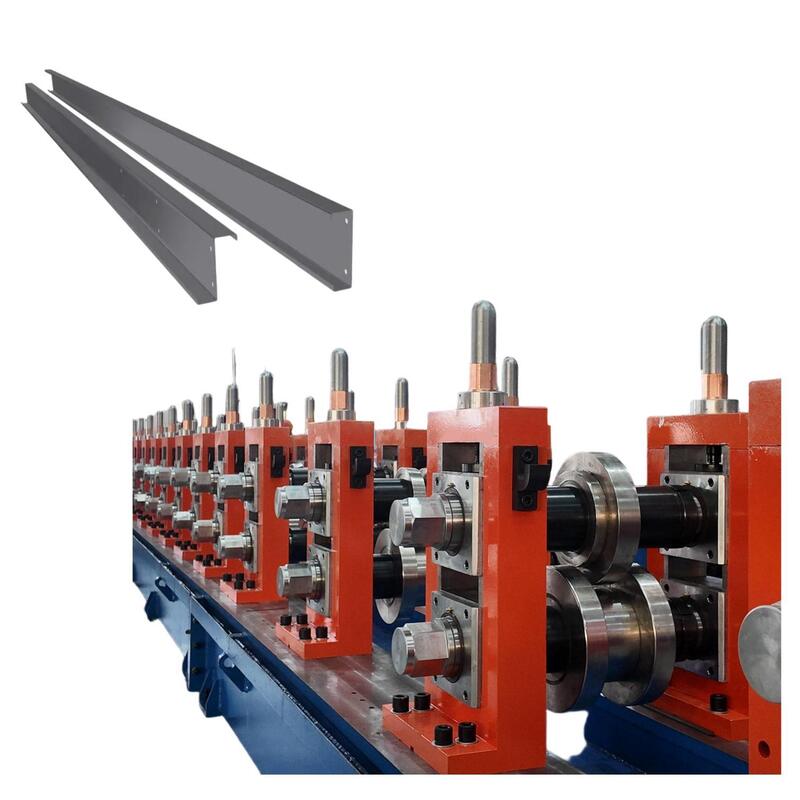

2000pcs Hr Purlin Roll Forming Machine

High-performance purlin forming machine designed for efficient production of structural components with precision and reliability.

Key Specifications

Attribute	Value
Material Compatibility	Steel, Aluminum, ZAM
Control System	Servo Motor And PLC
Horizontal deviation	± 0.5 mm
Longitudinal deviation of hole	± 0.5 mm
Warranty	1 year
Power Supply	220V, 380V
Punching Speed	300 Punches Per Minute
Operation Mode	Automatic
Key Selling Points	Long Service Life

Product Features

Produces different purlin sizes without changing rollers or spacers
No need to change cutter for different sizes
Easy operation with low maintenance cost
Infinite sizing capability within machine range helps save material
Optional punch hole at any position of purlin web side and flange side

Technical Parameters

Parameter	Value
Suitable material	Carbon steel, Color steel sheet, galvanized steel sheet
Main motor power	37 or 55 kW with Cycloidal reducer
Hydraulic station power	55kW, 37 kW
Hydraulic oil	40#
Thickness	1.0mm~8.0 mm
Diameter	Φ70mm, Φ80mm, Φ90mm...
Electric tension	220V/380V 3phase 50HZ
Material of roller	Cr12MoV (Equivalent to SKD11, STD11, D2)
Rolling galvanization thickness	1-3 mm
Processing speed	10-40 m/min
Processing precision within	10m±1.00mm
Material of cutting blade	Cr12MoV quenched

Production Display

Applications

Production Process

Packing and Shipping

Frequently Asked Questions

Q1. What are the main key points for selecting right machines?

A1: Whole structure, Roller Shaft, Roller Material, Motor & Pump, and Control system. As the new buyer, please kindly know that price is not the final point. Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machines need to be customized as per detailed request, because raw material, size, production usage, machine speed, and machine specification will be different.

Q3. What's your standard trade terms?

A3: We can provide the technical offer with FOB, CFR, CIF, Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE, TUV/BV Certificate.

Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
