Z Purlin Roll Forming Machine Steel Purlin Machine

Nama Merek:	Thronch
Moq:	1SET
Harga:	100000~300000 USD
Detail Pengemasan:	wadah
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

nilai jual utama:

Umur Panjang

Frekuensi:

50Hz/60Hz

Catu daya:

220V

Deviasi horisontal:

+- 0,5mm

Bahan:

Baja Canai Dingin

Kompatibilitas Bahan:

Baja, Aluminium, Tembaga, dll.

Sistem kendali:

PLC

Tipe decoiler:

Decoiler hidraulik

Sistem kendali:

Sistem Kontrol PLC

sumber listrik:

Listrik

Menyediakan kemampuan:

100 unit per tahun

Menyoroti:

Z purlin roll forming machine

steel purlin forming equipment

Z profile machine with warranty

Deskripsi Produk

Z Purlin Roll Forming Machine Steel Purlin Machine

Key Points:

Material: Galvanized or hot-rolled steel coil (1.5–3.0 mm thickness)
Forming speed: 10–20 m/min
Profile range: Web height 80–300 mm, flange width 40–100 mm
Control: PLC with touch screen (Siemens/Delta/Mitsubishi)
Punching: Automatic, servo-driven (holes positioned ±1 mm)
Cutting: Hydraulic, burr-free

Main Features:

Two in One: One machine produces both C and Z profiles with simple adjustment – saves cost and space.
High Precision: PLC and servo control ensure accurate cutting and punching.
Durable Structure: Rollers made of high-strength bearing steel, heat-treated and chrome-plated for long life.
Customizable: Profile size (web 80–300mm) and punching patterns can be tailored to your needs. Options from manual to fully automatic lines.
Key Specs: Material thickness up to 3.0mm, forming speed up to 20 m/min.
Certified: CE and ISO9001 approved.

Machines Regular Technical Parameter (Customization is available)

product model	xy-300
effective weld length	≤300mm;
effective shear length	300mm;
back and front gas protection of welding	positive and negative side protection device
applicable workpiece thickness	1.5-2.5mm
welding speed range	500～1500mm/min
Work mode	Hydraulic shearing, hydraulic clamping, scrap ring cannot be cut off
walking accuracy	0.10mm
hydraulic shear	5-15Mpa

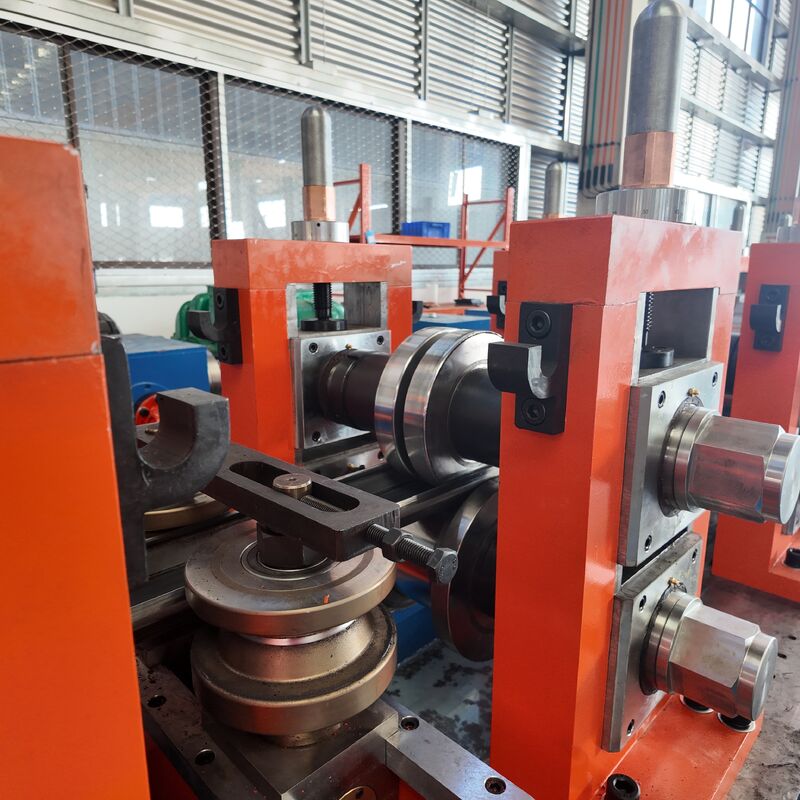

Z Purlin Roll Forming Machine Steel Purlin Machine 0
